| Platform | |
| Processor | 1 x Marvell ARM Neoverse Processor (N2 cores Up to 24 Cores) |
| Flash Memory | 32MB (NOR) |
| System Memory | 3 x DDR5 SO-DIMM ECC (Up to 144GB ECCGB) |
| Ethernet Port | 1x 10GbE x RJ45 GbE Port(s) on board 16x 25GbE/10GbE/1GbE x SFP28 25GbE Port(s) on board |
| Storage Device | 1x eMMC 5.1 (32GB Default) |
| Dimension (WxDxH) | 282.7mm x 210mm x 30mm (11.308" x 8.4" x 1.2") |
| I/O | |
| Management Console | 1x RJ45 Console |
| USB Port | 1 Type-A x USB 3.0 Port(s) |
| Operation & Certifications | |
| Operating Environment | 40°C (32 - 104°F) |
| Storage Environment | Temperature: -10 - 70°C (14 - 158°F) |

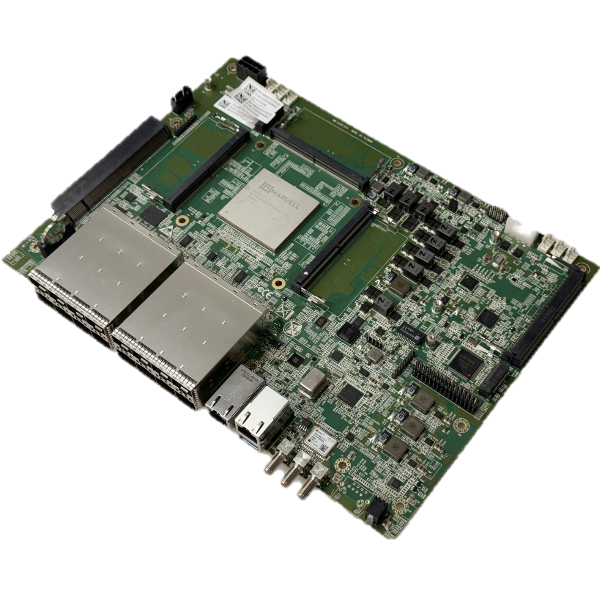

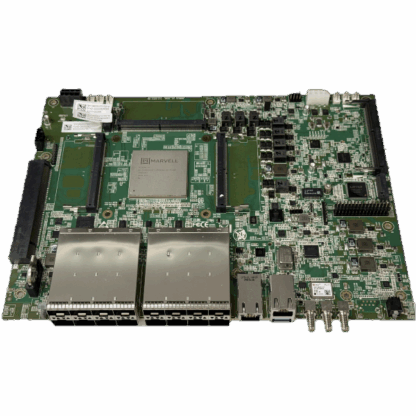

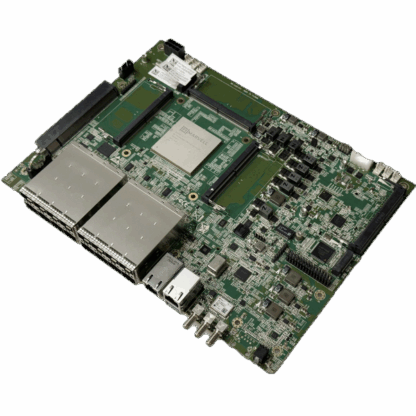

ERS-5320 Development Board
Hardware Acceleration
- 1x Marvell CN106XXS
- 3x DDR5 SO-DIMM (up to 144GB ECC)
- 16x 25GbE/10GbE/1GbE SFP28 (Software Configurable)
- 1x 10GbE RJ45
| Models | Core/Threads | Frequency (Max) | Cache | TDP |
| Marvell CN106XXS |
