Desktop Network Systems with Marvell CN9130 (ARM A72) Quad-Core SoC

, , ,
  • 1x Marvell ARM A72 CN9130 Processor (2.0GHz, 4 Cores)
  • 1x DDR4 SO-DIMM (up to 32GB)
  • 4x RJ45 GbE Ethernet Port
  • 2x SFP+ 10 GbE Ethernet Port
  • 1x MicroSD, 1x M.2 (Key M),1x eMMC (32GB)
  • 1x Lora module (mPCIe)

HawkeyeTech, a leading designer and manufacturer of telecommunication, networking and computing equipment, is delighted to provide a premium platform solution that “just works” with a wide range of operating systems and software.

The HK-5140 by HawkeyeTech therefore stands out from billions of other networking devices and its compact desktop system is pretested and ready to be configured with various operating systems. Together with standard software of this ecosystem, the HK-5140 is designed to meet the networking needs of many different industries.

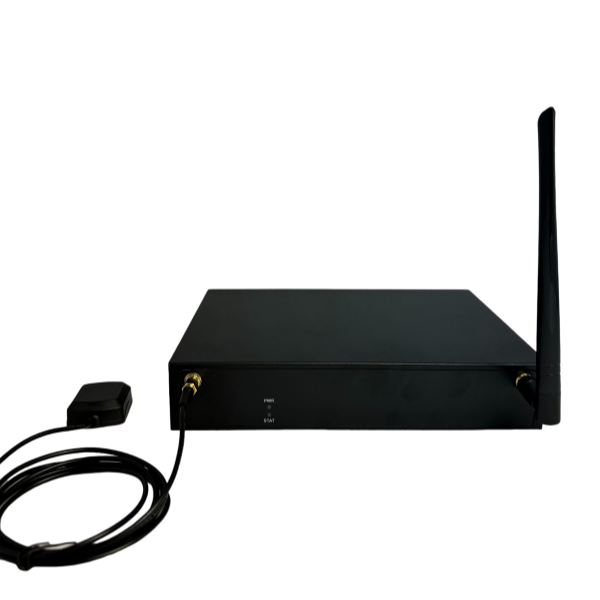

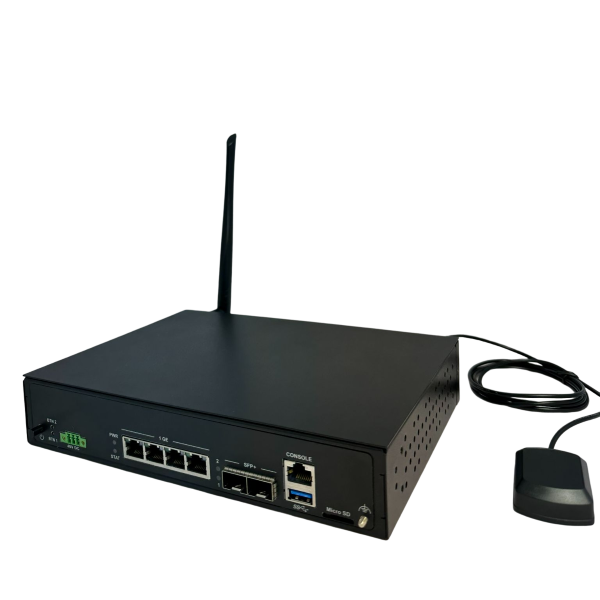

HK-5140 Desktop Network System

The HawkeyeTech HK-5140 is an advanced solution for Intelligent Networking, Security, control plane, and Edge Computing. The system is based on the Marvell Octeon TX2 CN9130 System-on-Chip (SoC) including a quad-core Arm Cortex-A72 using the Arm v8 high-performance CPU technology, ideally suited for a wide range of SOHO, SMB and Enterprise-class applications. Based on advanced technology, this SoC constitutes the highest performance Infrastructure quad-core processor offering.

The Marvell Octeon TX2 CN9130 SoC of the HK-5140 has access to up to 16GB DDR4 main memory by SO-DIMM module. Storage is available with 16GB eMMC flash memory onboard and one microSD slot. There are four Gbit Ethernet RJ-45 network ports plus two GbE RJ-45/SFP combo ports. Wi-Fi or cellular connectivity is possible by M.2 module. USB 3.0 is optionally available.

The HK-5140 is part of HawkeyeTech’s comprehensive security solutions to protect systems and networks from information disclosure, theft of software and data as well as from disruption or misdirection of the services different industries and companies provide. Highly power-efficient security solutions like the HK-5140 provide the performance and flexibility needed to meet the challenges of the contemporary world and ensure the system’s and network’s dependability, integrity and data privacy.

Processor1 x Marvell ARM A72 CN9130
ChipsetMarvell 88F8215 PCH
Flash Memory8MB (NOR)
System Memory1 x DDR4 SO-DIMM (Up to 32GB)
Ethernet Port4 x RJ45 GbE Port(s) on board
2 x RJ45 2.5GbE Port(s) on board
Expansion1 x mPCIe LoRaWAN server
[ GPS embedded ]
Storage Device1x MicroSD
1x M.2 (Key M)
1x eMMC (32GB)
Power Supply48V DC- IN 72W Adapter
Dimension (WxDxH)235mm x 182mm x 44mm (9.4" x 7.28" x 1.76")
Management Console1 x RJ45 Console Port
USB Port1 x USB 3.0 Port(s)
Operation & Certifications
Operating EnvironmentTemperature: -40 - 55°C (-40 - 131°F)
Storage EnvironmentTemperature: -40 - 70°C (-40 - 158°F)
Certification / FCC / UL / IC
Models Core/Threads Frequency (Max) Cache TDP
Marvell CN91304C2.0GHz

Order Inquiry


    Desktop, 1 x Marvell ARM A72 (CN9130), 1 x DDR4 ECC SO-DIMM, 4x RJ45 GbE, 2x SFP+, 32GB eMMC, 48VDC in
