| Platform | |
| Processor | 1 x NXP ARM A72 LS1046A |
| Flash Memory | 64MB |
| System Memory | 1 x DDR4 ECC SO-DIMM (Up to 16GB) |
| Ethernet Port | 4 x RJ45 GbE Port(s) on board 2 x RJ45/SFP GbE Combo Port(s) on board |
| Bypass | 1 segment(s) on board |
| Expansion | 1x mPCIe (PCIe x1) 1x mPCIe (USB 2.0) or 1x M.2 (B Key, PCIe+USB3.0, w/ uSIM) |
| Storage Device | 1x mSATA (FF: 3051) or 1x M.2 (M Key, FF: 2242, PCIe x2) 1x eMMC (8GB) |
| Power Supply | 60W Dual Adapter |
| Dimension (WxDxH) | 233.6mm x 165mm x 44.5mm (9.344" x 6.6" x 1.78") |
| I/O | |
| Management Console | 1 x RJ45 & TypeC Dual Console |
| USB Port | 2 x USB 3.0 Port(s) |
| Operation & Certifications | |
| Operating Environment | Temperature: 0 - 40°C (32 - 104°F) |
| Storage Environment | Temperature: -5 - 50°C (23 - 122°F) |
| Certification | CE / FCC |

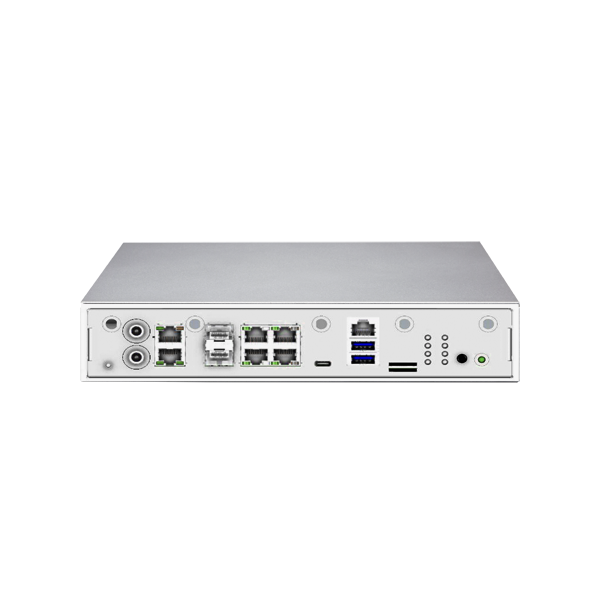

HK-6060
Desktop Network System with NXP LS1046A (ARM A72) Quad-Core SoC for Multi Access Edge ComputingMulti-access Edge Computing, Security Appliance
- 1x NXP ARM A72 LS1046A Processor (1.8GHz, 4 Cores)
- 1x DDR4 ECC SO-DIMM (up to 16GB)
- 2x GbE Combo (RJ45+ SFP) Ethernet Ports
- 4x GbE RJ45 Ethernet Ports
- 1x Bypass 4.5
- 1x eMMC & 1x M.2 & 1x mSATA Storage
- 1x RJ45 & 1 x Type C Dual Console
- 1x Wi-Fi Module (mPCIe)
| Models | Core/Threads | Frequency (Max) | Cache | TDP |
| NXP LS1046A | 4C | 1.6GHz |
