| Platform | |
| Processor | 1 x NXP ARM A72 LX2080A |
| Flash Memory | 64MB |
| System Memory | 2 x DDR4 ECC SO-DIMM (Up to 16GB) |
| Ethernet Port | 4 x RJ45 GbE Port(s) on board 2 x RJ45/SFP GbE Combo Port(s) on board 4 x SFP28 25GbE Port(s) on board |
| Bypass | 2 segment(s) on board |
| Expansion | 1x mPCIe (PCIe x1) 1x mPCIe (USB 2.0) or 1x M.2 (B Key, PCIe+USB3.0, w/ uSIM) 1x PCIe Adapter (PCIe x8) |
| Storage Device | 2x SATA 3.0 1x M.2 (M Key, FF: 2242, PCIe x2) 1x eMMC (8GB) |
| Power Supply | 150W Dual ATX PSU |
| Dimension (WxDxH) | 438mm x 336mm x 44mm (17.52" x 13.44" x 1.76") |
| I/O | |
| Management Console | 1 x RJ45 Console Port |
| USB Port | 2 x USB 3.0 Port(s) |
| Display | 1 x LCD Module |
| LOM | 1 x LOM |
| Operation & Certifications | |
| Operating Environment | Temperature: 0 - 40°C (32 - 104°F) |
| Storage Environment | Temperature: -5 - 50°C (23 - 122°F) |
| Certification | CE / FCC |

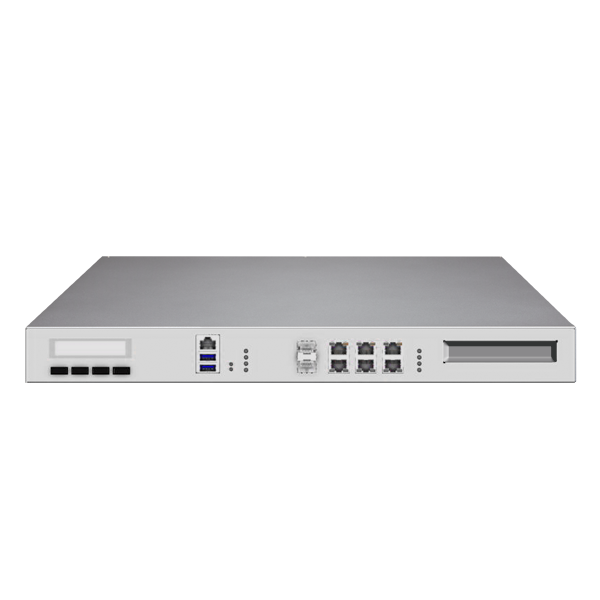

HK-6110
Multi-Edge Access Computing Rackmount System Based on NXP LX2080A (ARM A72) Octa-Core SoCMulti-access Edge Computing, Security Appliance
- 1x NXP ARM A72 LX2080A Processor (2.2GHz, 8 Cores)
- 2x DDR4 ECC SO-DIMM (up to 16GB)
- 2x GbE Combo (RJ45+ SFP) Ethernet Ports
- 4x GbE RJ45 Ethernet Ports
- 4x 25GbE SFP28 Ethernet Ports
- 2x Bypass 4.5
- 1x eMMC & 1x M.2 & 2x SATA 3.0 Storage
- 1x RJ45 Console
- 1x Wi-Fi Module (mPCIe)
| Models | Core/Threads | Frequency (Max) | Cache | TDP |
| NXP LX2080A | 8C | 2.2GHz |
