Non-Terrestrial Networks

Connecting the Unconnected



Expanding your reach to remote and underserved locations no longer means compromising on performance. HawkeyeTech’s systems for LEO services deliver resilient, low-latency connectivity that integrates seamlessly with your existing terrestrial networks. We ensure your global sites have mission-critical connectivity that enables real-time decision-making, wherever your operations take you. Bridging the LEO satellite link with terrestrial enterprise networks requires intelligent processing right at the access point.

HawkeyeTech’s LEO solutions like ERS-5320 and ERS-5430 integrate Multi-Access Edge Computing (MEC) directly into ground stations and enterprise satellite terminals, allowing for immediate data processing and aggregation. This can be turbo-charged by the HCB-5421 DPU accelerator, which handles high-speed encryption, decryption, and protocol translation, ensuring the speed of space is translated into usable, low-latency business data for real-time analysis at the remotest edge.



Recommended Products

Multi-Edge Access Computing Desktop with Marvell CN106XXS ARM Neoverse N2 cores

EDS-5310-0101 (EDS-5410)

    • 1x Marvell CN106XXS ARM Neoverse N2 cores (Up to 24 Cores, 2.5 GHz)
    • Up to 48GB ECC DDR5 (3x DDR Channels)
    • 8x 25GbE/10GbE/1GbE SFP28 Switch (Software Configurable)
    • 1x 10GbE SFP+
    • 1x RJ45 Console
    • 1x eMMC 5.1
see more FLYER

Multi-Edge Access Computing

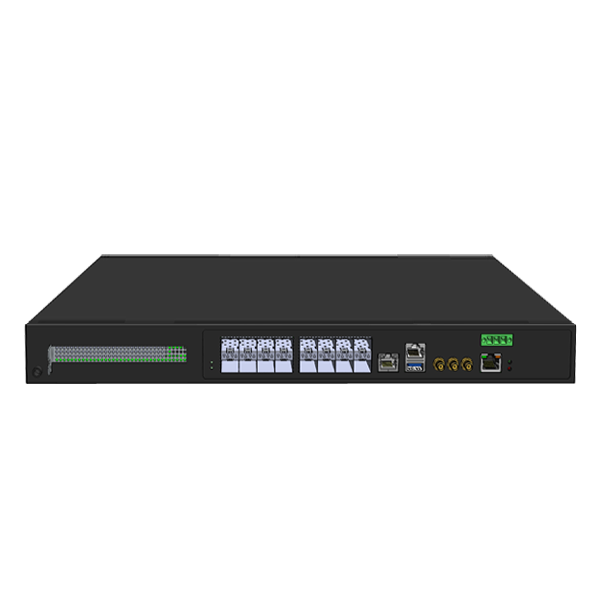

ERS-5320

    • Up to 24 x Arm N2 cores
    • 3 x DIMM sockets; up to 144GB DDR5 ECC
    • 16 x 25GbE/10GbE/1GbE SFP28 switch (software configurable)
    • 1 x 10GbE/5GbE/2.5GbE/1GbE RJ45 MGMT
    • 1 x RJ45 console
    • 1 x USB Type-A USB 3.0
    • 1 x 1GbE RJ45 BMC
    • 1 x m.2 M Key connector for NVMe SSD
    • 1 x m.2 B Key connector for 5G NR
    • 1 x PCIe GEN5 x4 extension slot
    • IEEE 1588 PTP ( Precision Time Sync )
see more FLYER

Multi-Edge Access Computing

ERS-5430

    • Up to 24 x Arm N2 cores
    • 3 x DIMM sockets; up to 144GB DDR5 ECC
    • 4 x 50GbE/25GbE/10GbE/1GbE SFP56
    • 2 x 10GbE/1GbE SFP+
    • 1 x RJ45 console
    • 1 x USB Type-A USB 3.0
    • 1 x 1GbE RJ45 BMC
    • 1 x m.2 M Key connector for NVMe SSD
    • 1 x m.2 B Key connector for 5G NR
    • 1 x PCIe GEN5 x4 extension slot
see more FLYER

Multi-Edge Access Computing

ERS-5510

    • Up to 8 x Arm N2 cores
    • 1 x DIMM socket; up to 48GB DDR5 ECC
    • 3 x 10GbE/1GbE SFP+ ( software configurable )
    • 1 x 10Gb/1Gb RJ45
    • 4 × 2.5Gb RJ45, optional 2 x PoE+ ports
    • 8 × 1Gb RJ45 switch
    • 1 x RJ45 console
    • 1 x USB Type-A USB 3.0
    • 1 x 1GbE RJ45 BMC
    • 1 x m.2 M Key connector for NVMe SSD
    • 1 x m.2 B Key connector for 5G NR
    • 1 x PCIe GEN3 x4 extension slot
see more FLYER

Multi-Edge Access Computing

ERS-5511

    • Up to 8 x Arm N2 cores
    • 1 x DIMM socket; up to 48GB DDR5 ECC
    • 3 x 25Gb / 10Gb / 1Gb SFP56
    • 1 x 10GbE / 1GbE RJ45
    • 4 x 2.5GbE RJ45
    • 8 x 1GbE RJ45 switch
    • 1 x RJ45 console
    • 1 x USB Type-A USB 3.0
    • 1 x 1GbE RJ45 BMC
    • 1 x m.2 M Key connector for NVMe SSD
    • 1 x PCIe GEN5 x4 extension slot
see more FLYER

Data Processing Unit with Marvell CN106XXS ARM Neoverse N2 cores

HCB-5330-0101 (HSC-5330)

    • 1x Marvell CN106XXS ARM Neoverse N2 cores (Up to 24 Cores, 2.5 GHz)
    • Up to 48GB ECC DDR5 (3x DDR Channels)
    • 1x MCU (NXP MIMXRT1176)
    • 8x 25GbE/10GbE/1GbE SFP28 Switch (Software Configurable)
    • 2x 1GbE/100MbE RJ45 (1 x Connect to MCU as default)
    • 1x M.2 M Key for SSD (PCIe 5.0 x2; FF: 2230)
see more FLYER

Data Processing Unit with Marvell CN106XX ARM Neoverse N2 cores

HCB-5410-0101 (HSC-5360)

    • 1x Marvell CN106XX ARM Neoverse N2 cores (Up to 24 Cores, 2.5 GHz)
    • Up to 48GB ECC DDR5 (3x DDR Channels)
    • 1x MCU (NXP MIMXRT1176)
    • 2x 100GbE QSFP56 (w/ Break out Cable)
    • 1x 1GbE/100MbE RJ45 (Connect to MCU as default)
    • 1x M.2 M Key for SSD (PCIe 5.0 x2; FF: 2230)
see more FLYER

Data Processing Unit with Marvell CN106XX ARM Neoverse N2 cores

HCB-5421-0101 (HSC-5361)

    • 1x Marvell CN106XX ARM Neoverse N2 cores (Up to 24 Cores, 2.5 GHz)
    • Up to 48GB ECC DDR5 (3x DDR Channels)
    • 1x MCU (NXP MIMXRT1176)
    • 2x 100GbE QSFP56 (w/ Break out Cable)
    • 1x 1GbE/100MbE RJ45 (Connect to MCU as default)
    • 1x M.2 M Key for SSD (PCIe 5.0 x2; FF: 2230)
see more FLYER

Data Processing Unit with Marvell CN103XX ARM Neoverse N2 cores

HCB-5500-0101 (HSC-5370)

    • 1x Marvell CN103XX ARM Neoverse N2 cores (Up to 8 Cores, 2.7 GHz)
    • Up to 16GB ECC DDR5 (2x DDR Channels)
    • 1x MCU (NXP MIMXRT1176)
    • 4x 50GbE QSFP56 (w/ Break out Cable)
    • 1x 1GbE/100MbE RJ45 (Connect to MCU as default)
    • 1x M.2 M Key for SSD (PCIe 5.0 x2; FF: 2242)
see more FLYER
