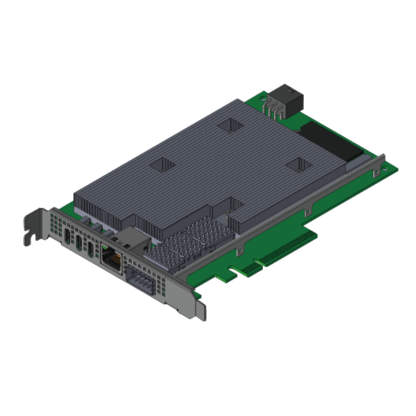

HSC-5361

Data Processing Unit with Marvell CN106XX ARM Neoverse N2 cores

  • 1x Marvell CN106XX ARM Neoverse N2 cores (Up to 24 Cores, 2.5 GHz)
  • Up to 32GB ECC DDR5 (2x DDR Channels)
  • 1x MCU (NXP MIMXRT1176)
  • 2x 100GbE QSFP56 (w/ Break out Cable)
  • 1x 1GbE/100MbE RJ45 (Connect to MCU as default)
  • 1x M.2 M Key for SSD (PCIe 5.0 x2; FF: 2230)
  • OVERVIEW & GOAL

AI, Machine Learning and Deep Learning all relies on data. DPUs are important computing components to improve performance, efficiency, and cost-effectiveness of data processing tasks, particularly for applications that require high-speed data processing or real-time decision-making. DPUs are used in a wide range of applications, including data centers, cloud computing, edge devices, autonomous vehicles, to name a few.

Utilizing DPUs effectively not only offloads workloads from other parts of the data computing system, but also leads to higher performance. This is because DPUs are vital components in specialized hardware units that accelerate specific data processing tasks and provide higher performance and energy efficiency than traditional general-purpose processors like CPUs or GPUs. White-box DPU comes in different variants based on the different use cases and applications that each variant is targeting. This brings great flexibility across the market.

  • CHALLENGES
  1. Compatibility. Ensuring compatibility with existing software and systems, as DPUs are specialized hardware, which often requires specific program code and interfaces to work effectively.
  2. Cost. DPUs can be expensive to develop and manufacture, so it can be challenging to achieve the right balance between cost and performance.
  3. Flexibility. Data processing is a rapidly expanding area, with new technologies and use cases coming to market. DPUs need to be flexible enough to adapt to new algorithms, data types, and processing requirements, while also providing a stable and reliable platform for developers and users.
  • SOLUTION & BENEFITS
  1. Improved Performance: DPUs perform certain tasks, like machine learning inference, network packet processing, or video encoding/decoding, far faster and with lower latency, resulting in an improved overall system performance.
  2. Energy Efficiency: DPUs are designed to be more energy-efficient than traditional processors. Through offloading specific tasks to a DPU, the main processor can be put into a lower power state, reducing overall power consumption and extending battery life.
  3. Reduced Cost: Through using a DPUs for specific tasks, developers can achieve better performance and efficiency without having to purchase more expensive CPUs or GPUs.
  4. Flexibility: DPUs are designed to adapt to new data processing tasks, technologies and applications.
  5. Security: DPUs are designed to include security features that help protect data and systems from cyber-attacks.
Platform
Processor1 x Marvell CN106XX ARM Neoverse N2 cores
ChipsetNXP MIMXRT1176 PCH
Flash Memory32MB (NOR)
System Memory2 x DDR5 ECC SO-DIMM (Up to 32GB)
Expansion1x M.2 M Key for SSD (PCIe 5.0 x2; FF: 2230)
Storage Device1x M.2 (Key M) NVMe SSD
1x eMMC 5.1 (8 to 64GB)
Power SupplyGoldfinger (Max.: 75w) as primary
ATX connector for additional power input (75W)
Dimension (WxDxH)111.15mm x 167.65mm x 20.32mm (4.446" x 6.706" x 0.8128")
Weight (Kg)Half-Length (Single Slot) Kg
I/O
Management Console1x 1GbE/100MbE RJ45 (MCU)
USB Port1 Type-C x USB 3.0 Port(s)
Operation & Certifications
Operating Environment40°C (32 - 104°F)
Storage EnvironmentTemperature: -10 - 70°C (14 - 158°F)
OS SupportLinux
Models Core/Threads Frequency (Max) Cache TDP
Marvell CN1062424C2.5GHz40W

Order Inquiry

    HSC-5361

    DPU (Half-Length; Single Slot), 1x Marvell CN106XX ARM Neoverse N2 cores, 2x DDR5 Channels, 2x 100GbE QSFP56 (w/ Break out Cable), 1 x MCU, 1 x eMMC 5.1
