| Platform | |
| Processor | 1 x Marvell MIPS CN8030 |
| Flash Memory | 16MB |
| System Memory | 1 x DDR4 RAM (4GB on board)(Up to 4GB) |
| Ethernet Port | 8 x RJ45 GbE Port(s) on board 2 x RJ45/SFP GbE Combo Port(s) on board |
| Storage Device | 1x eMMC (8GB) |
| Power Supply | VDC 12-48V Dual Redundant Inputs |
| Dimension (WxDxH) | 180mm x 120mm x 48mm (7.2" x 4.8" x 1.92") |
| I/O | |
| Management Console | 1 x RJ45 Console Port |
| USB Port | 1 x USB 3.0 Port(s) |
| Operation & Certifications | |
| Operating Environment | Temperature: -40 - 75°C (-40 - 167°F) |
| Storage Environment | Temperature: -40 - 85°C (-40 - 185°F) |
| Certification | CE / FCC / RoHS |

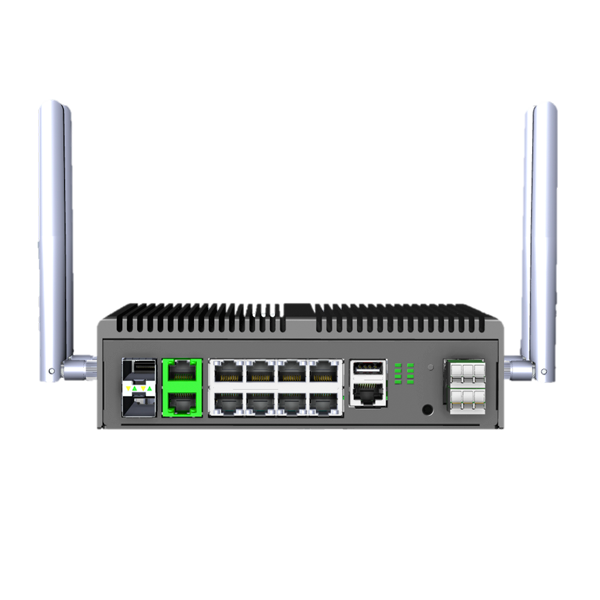

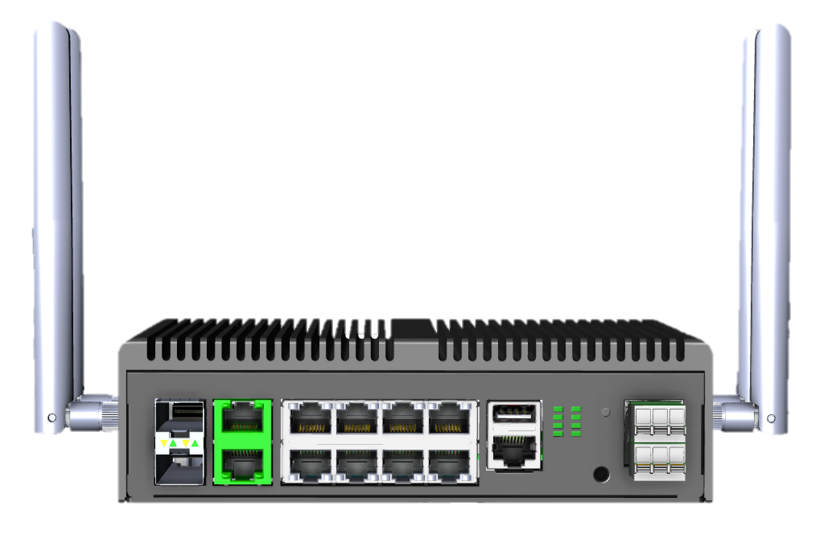

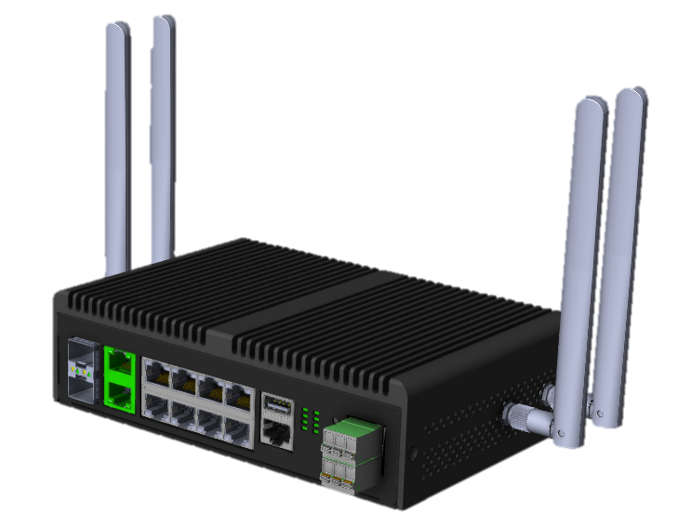

HK-5030
Rugged Fanless Network System with Marvell CN8030 (MIPS64) Quad-Core SoC and WiFi & Cellular OptionsInternet of Things
- 1x Marvell MIPS CN8030 Processor (1.5GHz, 4C)
- 4GB DDR4 RAM
- 8x GbE RJ45 Ethernet Ports
- 2x GbE Combo (RJ45+ SFP) Ethernet Ports
- 8GB eMMC Storage
- 1x RJ45 Console
- 1x Wi-Fi Module (mPCIe)
| Models | Core/Threads | Frequency (Max) | Cache | TDP |
| Marvell CN8030 | 4C | 1.5GHz |
