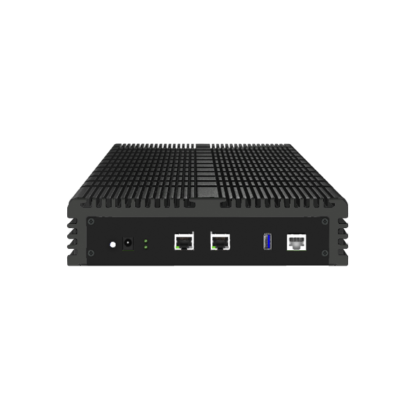

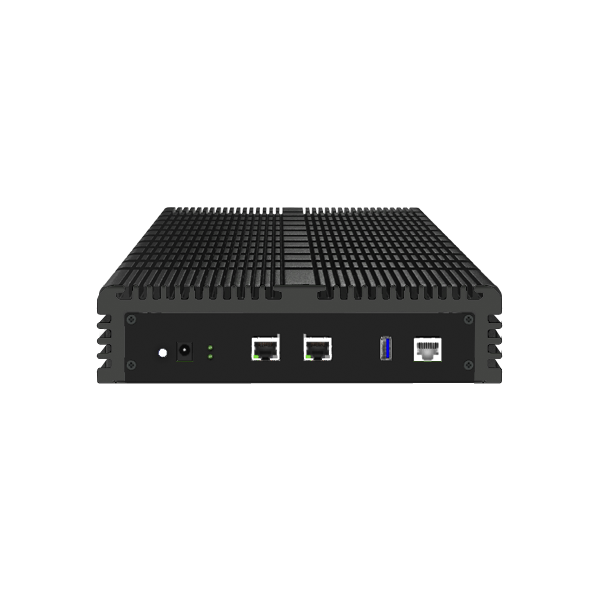

HK-6050

Rugged Edge IoT Gateway with NXP LS1043A (ARM A53) Quad-Core SoC with Wi-Fi/Cellular Option

  • 1x NXP ARM A53 LS1023/LS1043A Processor (1.4GHz, 2C/4C)
  • 4GB DDR4 RAM
  • 2x GbE RJ45 Ethernet Ports
  • 64GB eMMC Storage
  • 1x RJ45 Console
  • 1x Wi-Fi Module (M.2)
Platform
Processor1 x NXP ARM A53 LS1023/LS1043A
Flash Memory64MB
System Memory1 x DDR4 RAM (4GB on board)(Up to 4GB)
Ethernet Port2 x RJ45 GbE Port(s) on board
Expansion1x M.2 (E Key, PCIe x2)
Storage Device1x eMMC (64GB)
Power Supply24W Adapter
Dimension (WxDxH)230mm x 135mm x 55mm (9.2" x 5.4" x 2.2")
I/O
Management Console1 x RJ45 Console Port
USB Port1 x USB 3.0 Port(s)
Operation & Certifications
Operating EnvironmentTemperature: 0 - 40°C (32 - 104°F)
Storage EnvironmentTemperature: -5 - 50°C (23 - 122°F)
CertificationCE / FCC / RoHS
Models Core/Threads Frequency (Max) Cache TDP
NXP LS10232C1.4GHz
NXP LX1043A4C1.4GHz

Order Inquiry

    HK-6050

    Desktop, 1 x NXP ARM A53 (LS1023/LS1043A), 1 x 4GB DDR4 RAM, 1 x RJ45 GbE (PoE PD), 1 x RJ45 GbE, 1 x 24W Adapter
