| Platform | |
| Processor | 1 x Marvell MIPS CN7130 |
| Flash Memory | 256MB (NAND) + 4MB (NOR) |
| System Memory | 1 x DDR3 RAM (1GB on board)(Up to 1GB) |
| Ethernet Port | 4 x RJ45 GbE Port(s) on board 2 x RJ45/SFP GbE Combo Port(s) on board |
| Expansion | 1x mPCIe (Wi-Fi) |
| Storage Device | 1x MicroSD |
| Power Supply | 20W Adapter |
| Dimension (WxDxH) | 235mm x 165mm x 44.45mm (9.4" x 6.6" x 1.778") |
| Weight (Kg) | 1.13 Kg |
| I/O | |
| Management Console | 1 x RJ45 Console Port |
| Operation & Certifications | |
| Operating Environment | Temperature: 0 - 40°C (32 - 104°F) |
| Storage Environment | Temperature: -5 - 50°C (23 - 122°F) |
| Certification | CE / FCC / RoHS |

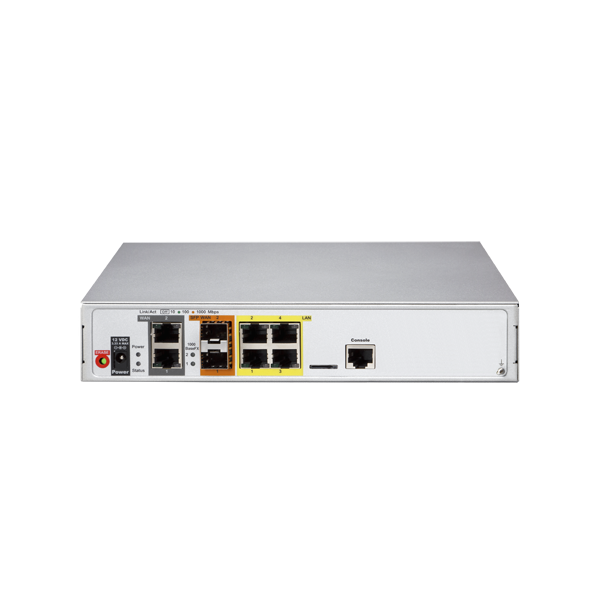

HK-3011
Desktop Network System with Marvell CN7130 (MIPS64) Quad-Core SoCMulti-access Edge Computing, SBC & UCS, Security Appliance
- 1x Marvell MIPS CN7130 Processor (1.2GHz, 4 Cores)
- 1GB DDR3 RAM
- 2x GbE Combo (RJ45+ SFP) Ethernet Ports
- 4x GbE RJ45 Ethernet Ports
- 1x Micro SD
- 1x RJ45 Console
- 1x Wi-Fi Module (mPCIe)
| Models | Core/Threads | Frequency (Max) | Cache | TDP |
| Marvell CN7130 | 4C | 1.2GHz |
