| Platform | |
| Processor | 1 x NXP QorIQ T1040 |
| Flash Memory | 64MB (NOR) |
| System Memory | 1 x DDR3L 1600MHz SO-DIMM (2GB on board)(Up to 8GB) |
| Ethernet Port | 8 x RJ45 GbE Port(s) on board 2 x RJ45/SFP GbE Combo Port(s) on board |
| Expansion | 1x mPCIe (Wi-Fi) |
| Storage Device | 1x MicroSD 1x SATA 3.0 |
| Power Supply | 40W Adapter |
| Dimension (WxDxH) | 235mm x 165mm x 44mm (9.4" x 6.6" x 1.76") |
| Weight (Kg) | 1.13 Kg |
| I/O | |
| Management Console | 1 x DB9 Console Port |
| Operation & Certifications | |
| Operating Environment | Temperature: 0 - 40°C (32 - 104°F) |
| Storage Environment | Temperature: -5 - 50°C (23 - 122°F) |
| Certification | CE / FCC / RoHS |
HK-0910

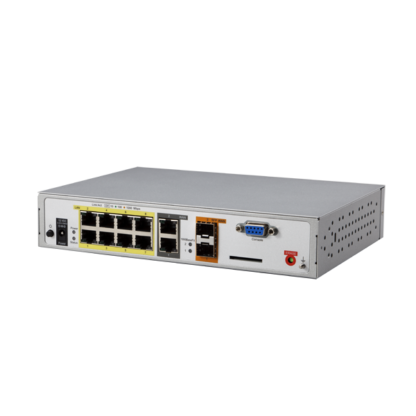

Desktop Systems with NXP QorIQ T1040 SoC & 8x Ethernet PortsSBC & UCS
- 1x NXP QorIQ T1040 Processor (1.2GHz, 4 Cores)
- 1x DDR3L SO-DIMM (up to 8GB)
- 2x GbE Combo (RJ45+ SFP) Ethernet Ports
- 8x GbE RJ45 Ethernet Ports
- 1x Micro SD & 1x SATA 3.0 Storage
- 1x DB9 Console
- 1x Wi-Fi Module (mPCIe)
| Models | Core/Threads | Frequency (Max) | Cache | TDP |
| NXP QorIQ T1040 | 4C/8T | 1.2GHz | 7W |
