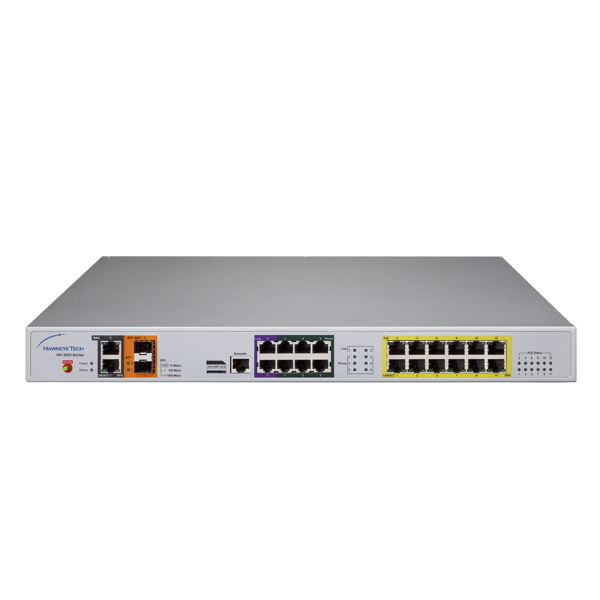

HK-3020

Rackmount Network System based on Marvell CN7130 (MIPS64) Quad-Core SoC

  • 1x Marvell MIPS CN7130 Processor (1.2GHz, 4 Cores)
  • 1GB DDR3 RAM
  • 2x GbE Combo (RJ45+ SFP) Ethernet Ports
  • 12x GbE RJ45 Ethernet Ports
  • 1x Micro SD
  • 1x RJ45 Console
  • 1x Wi-Fi Module (mPCIe)
Platform
Processor1 x Marvell MIPS CN7130
Flash Memory256MB (NAND) + 4MB (NOR)
System Memory1 x DDR3 RAM (1GB on board)(Up to 1GB)
Ethernet Port12 x RJ45 GbE Port(s) on board
2 x RJ45/SFP GbE Combo Port(s) on board
Expansion1x mPCIe (Wi-Fi)
Storage Device1x MicroSD
Power Supply40W/210W Power Module
Dimension (WxDxH)438mm x 291mm x 44mm (17.52" x 11.64" x 1.76")
Weight (Kg)3.69 Kg
I/O
Management Console1 x RJ45 Console Port
2x FXO RJ-11
6x FXS RJ-11
Operation & Certifications
Operating EnvironmentTemperature: 0 - 40°C (32 - 104°F)
Storage EnvironmentTemperature: -5 - 50°C (23 - 122°F)
CertificationCE / FCC / RoHS
Models Core/Threads Frequency (Max) Cache TDP
Marvell CN71304C1.2GHz

Order Inquiry

    HK-3020

    1U Rackmount, 1 x Marvell MIPS (CN7130), 1 x 1GB DDR3 RAM, 12 x RJ45 GbE (VSC7421, PoE/at/bt), 2 x SFP/RJ45 GbE Combo, 2x FXO RJ-11, 6x FXS RJ-11, 40W/210W Power Module

    HK-3021

    1U Rackmount, 1 x Marvell MIPS (CN7130), 1 x 1GB DDR3 RAM, 12 x RJ45 GbE (VSC7421, PoE/at/bt), 2 x SFP/RJ45 GbE Combo, 40W/210W Power Module
